The 2020 Stylus features aggressive, low slung geometry built around our most robust chromoly tubeset.
It really is a do everything trail bike that’s incredibly versatile and ready for anything from all day trail riding to big burly lines. It’s built to climb, descend, jump and do it with authority. It features our 12mm through-axle dropout system with 148mm Boost hub spacing, our unique yokel chainstay layout offering ample tire clearance for up to 27.5x2.6 and 26 x 3.0. With a short seattube it has plenty of standover clearance and room to drop the saddle when you need to get it right out of the way.
Built around a 160mm fork with a slack front end, the Stylus is the choice for riders who tend to favour rough terrain and need a bike that will stand up to plenty of abuse and last through the apocalypse.
- Check out our current bike lineup here.
Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.
The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.
It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.
It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.
Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.
Hub Spacing // Boost 148mm (Axle and Hanger Included)
Headset // 44-56 Semi Integrated
Seat Clamp Size // 35mm
Seatpost Size // 31.6mm
BB // 73mm Threaded, ISCG Mounts
Wheel Size // 27.5" or 26+
Recommended Fork Travel // 160mm (±10mm)
Weight // 7.27lbs / 3.3kg (M/L)
|PARTS||G2 BETTER BUILD|
|FORK||Rock Shox Lyrik Select + 160mm Boost 110x15mm|
|STEM||Chromag HiFi 40mm|
|HANDLEBAR||Chromag OSX 25mm Rise, 800mm Wide|
|HEADSET||Cane Creek Forty ZS|
|BRAKES||SRAM G2 RSC|
|SHIFTERS||SRAM GX Eagle|
|CASSETTE||SRAM GX Eagle 10-50t|
|REAR DERAILLEUR||SRAM GX Eagle|
|WHEELSET||Chromag 27.5" Ba30 Rims / Chromag R4 Hubs.|
|TIRES||Maxxis Minion DHF/DHR|
|SEATPOST||Rock Shox Reverb or OneUp Dropper V2|
|SADDLE||Chromag Trailmaster DT|
|CHAIN||SRAM GX Eagle|
Build options are subject to availability and liable to change without prior notice.
To purchase a complete build, please contact us directly. We are happy to answer all your questions about our bikes and products. Call: 604-905-6667 Email: firstname.lastname@example.org
*US pricing applies to all US and International purchases.

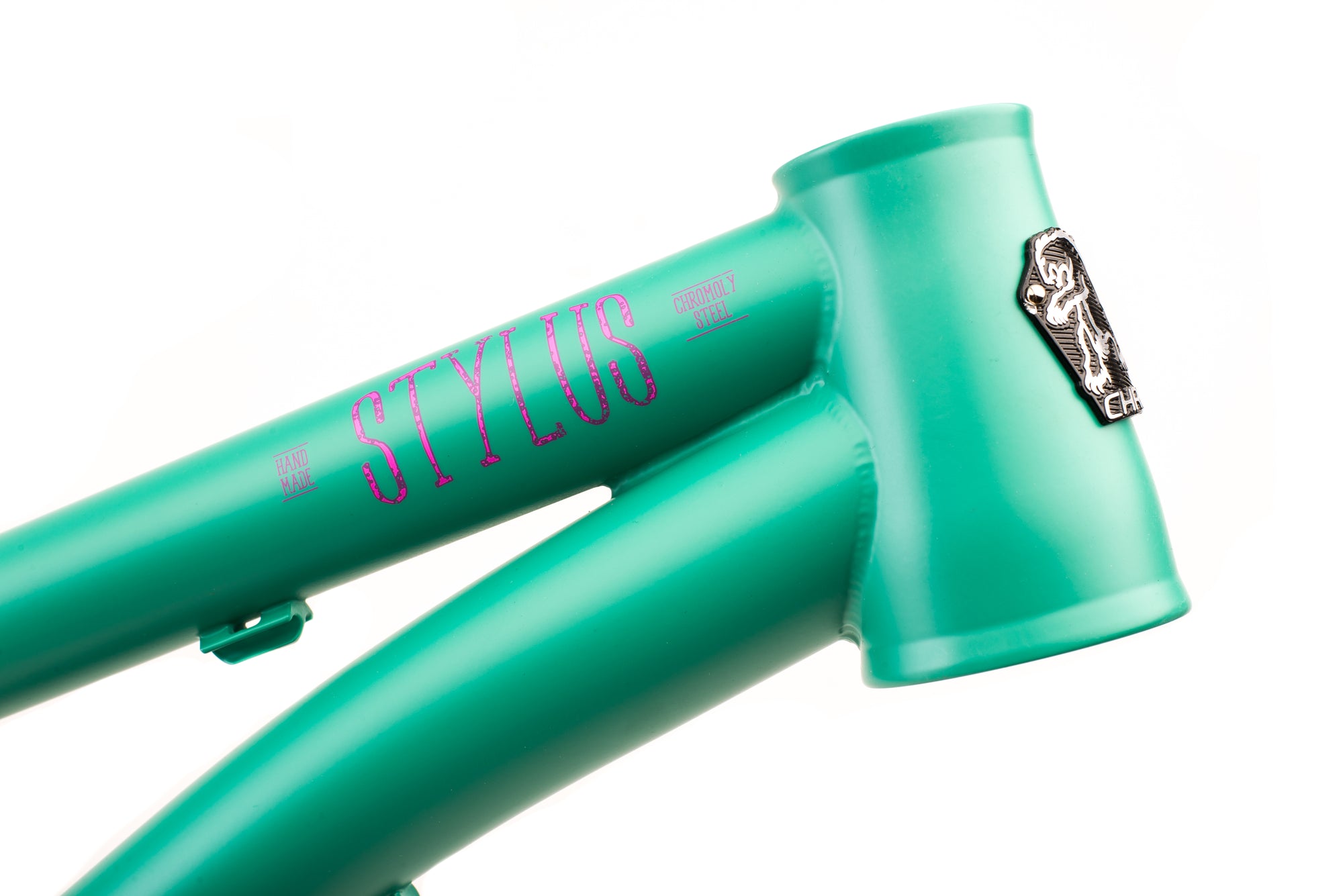

Head Tube Badge
Your bike is special. The head tube badge is the finishing touch so we’ve always made a point of taking the time to do something interesting with it. Our head tube badges have changed over the years and are an indication of the time each bike was made. Whether it’s a cast bronze, or polished stainless steel, water cut aluminum or a 3D CNC carving, each one represents our commitment to detail.
As 12mm through axles have proven to be solid, reliable and convenient, we have committed most of our models to utilize this format. Our 12mm dropouts are accurate and tough and feature a removable derailleur hanger with a sturdy interface for strength and reliability.
Our ‘Yokel’ design is a small machined junction on the chainstay that helps accommodate both tire clearance and chainring clearance. Our first versions were huge CNC yokes that bridged the entire front end of the chainstays. Over time we refined this to minimize weight by arranging our chainstay layout asymmetrically and reducing the yoke to a minimal size. It’s one of our most unique frame features and has been copied by other frame makers.
Chain Stay Protector
All Chromags now ship with our injection moulded chain stay protector to help keep the paint fresh and the noise low. These have an adhesive applied, but also slot for zip ties if they come unstuck years down the line, or if you want to apply it to another frame.
|Frame Size||STypical Rider Height: 155cm - 165cm||MTypical Rider Height: 163cm - 174cm||M/LTypical Rider Height: 172cm - 183cm||LTypical Rider Height: 181cm - 192cm|
* Max. post insertion based on Rockshox Reverb
